My wifes bike came to us w the front turn signals removed.The wires were cut just behind the harness clip.Each side has 3 wires to it,1 black,1purple and 1 blue.The clip for the harness(male side) has numbers 1-6 across the top for each wire slot. My question is which wires go in each slot?Which one is wire 1,2 ect.I tried to make an educated guess and hook it up but nothing worked right so I no I did it wrong!Any one know bout 03 Harley Sportster front blinker wiring? Losing my mind here...at least the bike is  in the house so I dont have to freeze my ass off!

It has been forever since I have been working on a Harley, but from what I remember. Black is ground, blue is marker, and left turn is voilet, and you should have a brown wire for the right turn.

For the flht it would go; outsides (1 and 6) are both black. Next would be the turn signals #2 is brown and # 5 is the purple and the two centers are both blue.

Just remember, If it burns up, it is not my fault! LOL

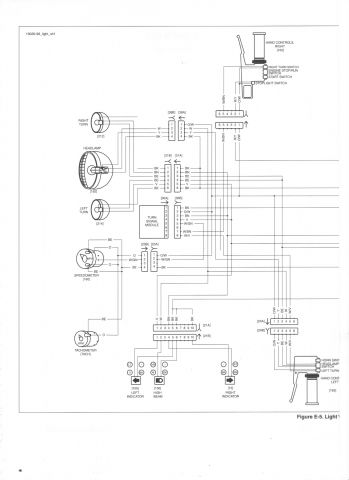

Here's a schematic for my FXR if it will help

Yep, that's the same setup for my Fxr in case you can't read the schematic

Thanks guys...there is no brown for her bike,left and right are both violet,the others are as you said they would be.Only problem is when I hooked them up,1 and 6 black,2 and 5 purple,blues 3 and 4,one running light on left worked but not right:-( also turn on left blinker and I get Left front and right rear! Right blinker nothing.When I switched them(wires)same shit....might be in over my head and thought it would be easy lol!

 Malissa keeps calling you "fixer dude" and now that you posted that  I will never get her to call you "fxrdude" lol! Thanks for your help brother:-)

 Thanks Gary...no fire yet! Seems like only I got steamed lol!

OK here ya go........go get ya a hand full of fuses, and keep trying different hook up's until you figure it out or run out of fuses, then just use your hand to signal.

I'm sorry I'm going to hell for that one........forgive the smart ass in me. I think fxr is da man.

Dragon

OK I am on it...course no fuses blown yet!

Victory! Everything works.. Thanks for your help!

Note to self....if it doesnt work three times do it four times...lol!Also make sure all the connectors are making good contact, doh!

wolfhound tha fixer....got a good ring to it huh?...lol. Glad ya got it and for tha record tell Malissa my fixin capabilities are less than a shade tree mechanic...lol. Gotta go now...Fixin (get it? fixin) ...lol to watch the Saints and tha Vikings...Later

 LOL, you will always be fixer here now man,thanks and enjoy the game!

Yes the order was correct.I did end up swapping left and right sides(wires) because they were backwards(Left front, right rear...oops) but the problem I had was that the wires were not fully seated in the clip so when I clicked the two together some of the connections were not mated properly. No fuse issues at all,just my lack of experience lol! On the up side I am stubborn as hell and dont give up(there was a lot of cursing though!). Thanks again,you were spot on!

Everybody did good here with their input, now lets hope it helps someone else

http://i50.servimg.com/u/f50/11/00/68/87/1998-110.jpg />
try this diagram..see if this helps

or for what looks like 6.99 you can download the whole service manual with wiring diagrams..

http://www.tradebit.com/filedetail.php/8599972-instant-download-harley-davidson-xl-xlh />
hope it helps
