Looking for some help with a smc #590118 hex horseshoe oil tank.

  • Smalls47056
    • 1 posts
    March 7, 2021 6:17 PM PST
    I have a hex horseshoe oil tank made by SMC the part number is 590118. I was hoping someone might have the diagram for this tank. (In other words how it is hooked up...which is the supply tap, which is the return tap, and which is the vent tap)
    Thanks in advance,
    Scott
  • RexTheRoadDog
    • Moderator
    • 19067 posts
    March 10, 2021 5:31 AM PST

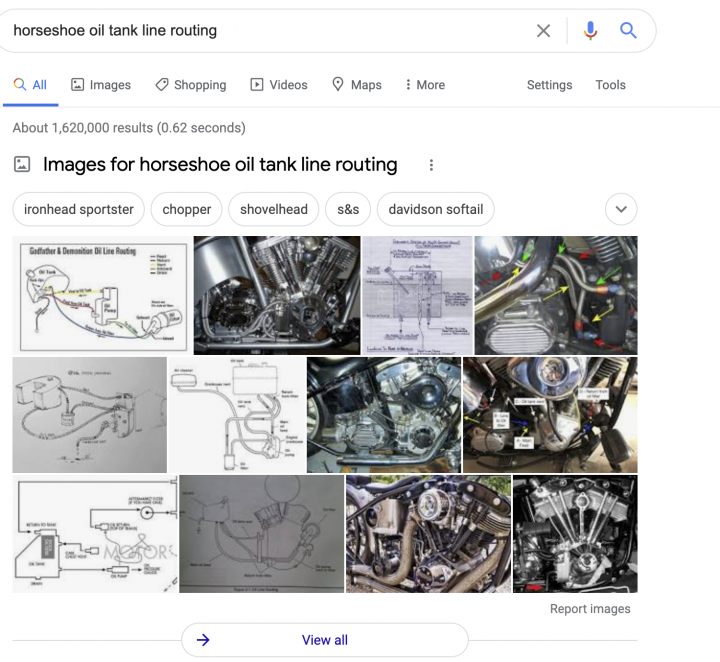

    Try a google search...

  • Joshua236
    • 1 posts
    September 23, 2024 7:39 PM PDT

    retro bowl college

    Hi Scott,

    You can find information about the connections on your SMC oil tank by checking the labels or manual. Typically, the supply end is on the bottom, the return end is on the top, and the vent end is on the top or side. If necessary, contact SMC for a more precise diagram.
